1.Feature
- Supports half-duplex to full-duplex TTL signal conversion
- Selectable TTL levels: 3.3v / 5.0v
- Enables ID configuration and parameter adjustment for bus servo
- Facilitates communication between TTL devices and PCs or other host platforms
- Provides reverse polarity protection to enhance circuit safety
2.Specification
3.Interface Definition
4.CAD Drawing
5. Schematic
| Input Voltage |
9.0-15v |
|---|---|
| Signal conversion |
Half-duplex to full-duplex conversion |
| TTL level |
3.3v ,5.0v |
| Peak Current |
20A |
| UART output |
1 |
| Data interface |
Type-C |
| Operating Temperature |
-10 ~ 60℃ |
| Protection features |
Reverse polarity protection |
| Interface |
PH2.0 × 2 |
| Mounting holes |
M2.0 × 3 |
| Power LED |
Red |
| Dimensions(W×H) |
36×24mm |
| Weight |
5g |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

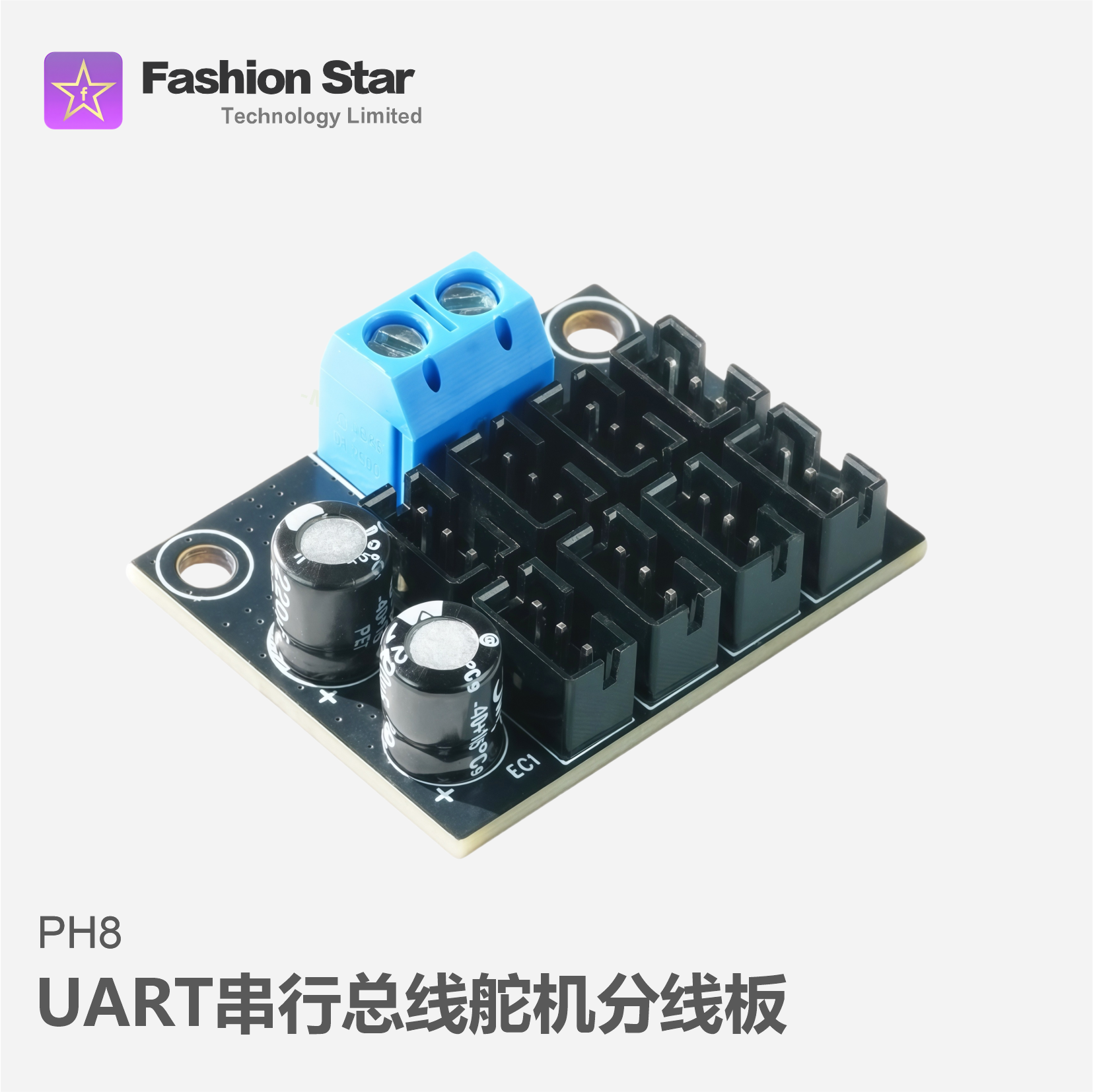

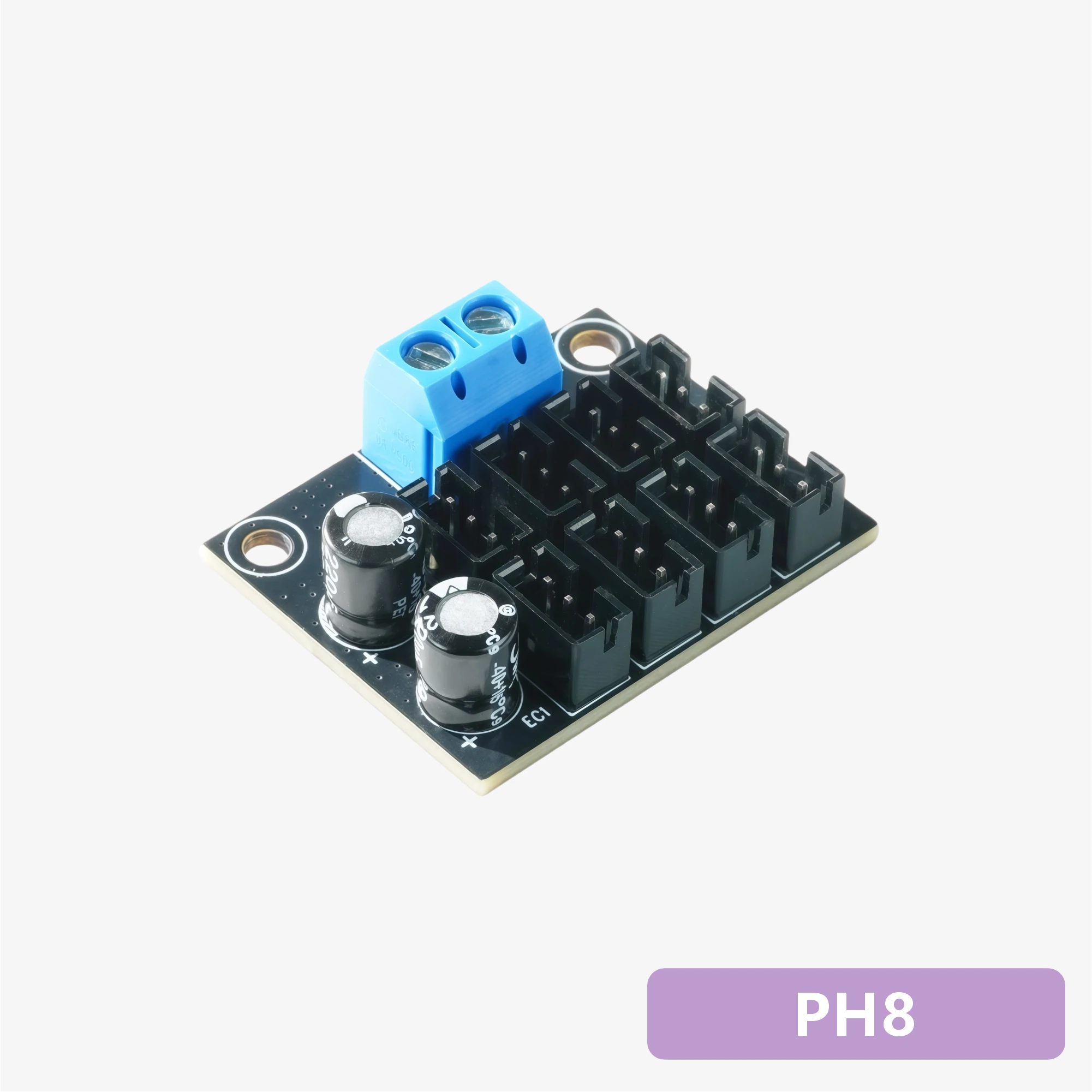

Converter （PH8）
$5.00
UC-01 is a TTL/USB debugging adapter that supports both half-duplex and full-duplex communication, with switchable voltage levels between 3.3V and 5.0V.
Equipped with a Type-C interface, it is designed for configuring IDs, setting parameters, and enabling communication between bus servos, PCs, and other platforms—offering broad compatibility and ease of use.
