Power Supply Notice
Overview
6+1 DOF – More Ways to Move
Brushless Servos
No Calibration, Ready to Learn
One-Button Hover Hold
Parallel Gripper (Replaceable Fingertips)
All-Metal Frame & Integrated Base
Media Gallery
Specification
|
Item |
Cello |
Violin |
|---|---|---|
|
Reach |
670mm |
470mm |
|
DOF |
6+1 |
6+1 |
|
Repeatability |
1mm |
- |
|
Accuracy |
5-8mm |
- |
|
Working Payload |
750g |
- |
|
Joint Range |
Joint 0 : ±180° Joint 1 : 0°~200° Joint 2 : 0°~180° Joint 3 : -60°~115° Joint 4 : -65°~100° Joint 5 : ±147° Grripper : 0~70mm |
Joint 0: ±123° Joint 1: 0°~180° Joint 2: 0°~187° Joint 3: -65°~100° Joint 4: -65°~100° Joint 5: ±147° |
|
Servos |
RX18-U100H-M x 3 RX8-U50H-M x 3 RX8-U51H-M x 1 |
RX8-U50H-M x 2 RA8-U25H-M x 4 RA8-U26H-M x 1 |
|
Communication Hub |
UC-01 |
UC-01 |
|
Power Supply |
12V25A/300w XT60 |
12V10A/120w XT30 |
|
Weight |
3.15kg |
1.10kg |
|
Parallel Gripper Kit |
✓ |
✓ |
|
Works with ROS 2 |
✓ |
✓ |
|
Works with MoveIt |
✓ |
✓ |
|
Works with Gazebo |
✓ |
✓ |
ROS 2
Allows setting the current position as the origin (0°) in free mode, enabling easy zero calibration and providing a reference start for subsequent motions.
MoveIt Motion Planning
Intuitive Control GUI
Drag-to-Teach Demonstration
Gazebo Simulation Ready
Lerobot
- Fully compatible with Hugging Face LeRobot, aligned with the latest PyTorch tooling
- All integration code is open-source
- Complete unbox → teleop → record → dataset → train workflow documentation
- Supports LeRobotDataset (v3) and optional Hugging Face Hub dataset versioning/sharing
- Start training with just one personal computer, no extra infrastructure required
Isaac Sim
- Includes ready-to-use USD assets for the StarAI Arm in Isaac Sim
- Fully compatible with the Isaac Sim simulation environment
- Enables ROS 2 bridging between the real robot and Isaac Sim for synchronized control and state feedback
- Supports teleoperation workflows between physical hardware and the Isaac Sim robot model
CAD Drawings
Documents
Certification
|
HS Code |
9023009000 |
|
ECCN Code |
EAR99 |
|
Country of Origin |
China |
|
Certifications |
CE, FCC, RoHS |

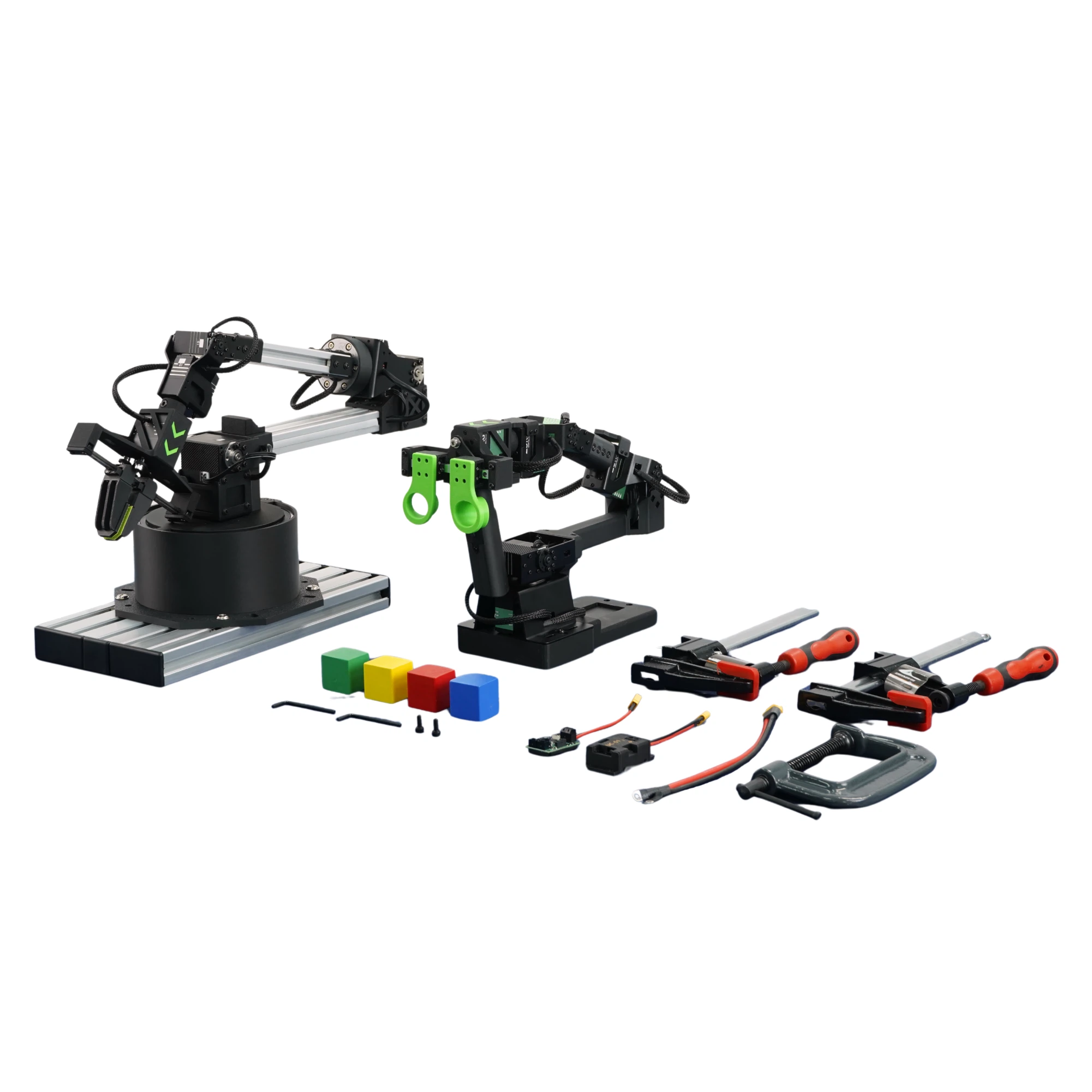

Part List
|
Cello |
Qty. |
|---|---|
|
Robotic Arm Main Body |
1 |
|
Robotic Arm Gripper |
1 |
|
Packaging Box |
1 |
|
Robotic Arm Screw Kit |
8 |
|
F Fixture |
4 |
|
Color Blocks |
4 |
|
Violin |
Qty. |
|---|---|
|
Robotic Arm Main Body |
1 |
|
Robotic Arm Handle |
1 |
|
Packaging Box |
1 |
|
Robotic Arm Screw Kit |
1 |
|
C Fixture |
1 |
|
UC-01 Debug Adapter Board |
2 |
| Reach |
670mm |
|---|---|
| DOF |
6+1 |
| Repeatability |
1mm |
| Accuracy |
5-8mm |
| Working Payload |
300g |
| Joint Range |
Joint 0 : ±180° | Joint 1 : 0°~200° | Joint 2 : 0°~180° | Joint 3 : -60°~115° | Joint 4 : -65°~100° | Joint 5 : ±147° | Grripper : 0~70mm ,Joint 0 : ±180° Joint 1 : 0°~200° Joint 2 : 0°~180° Joint 3 : -60°~115° Joint 4 : -65°~100° Joint 5 : ±147° Grripper : 0~70mm |
| Servos |
RX18-U100H-M x3 | RX8-U50H-M x3 | RX8-U51H-M x1 |
| Communication Hub |
UC-01 |
| Power Supply |
12V 25A / 300w XT60 |
| Weight |
1.10kg ,3.15kg |
| Parallel Gripper Kit |
✓ |
| Works with ROS 2 |
✓ |
| Works with MoveIt |
✓ |
| Works with Gazebo |
✓ |
